DM1024

Call for Pricing

Extended Warranty

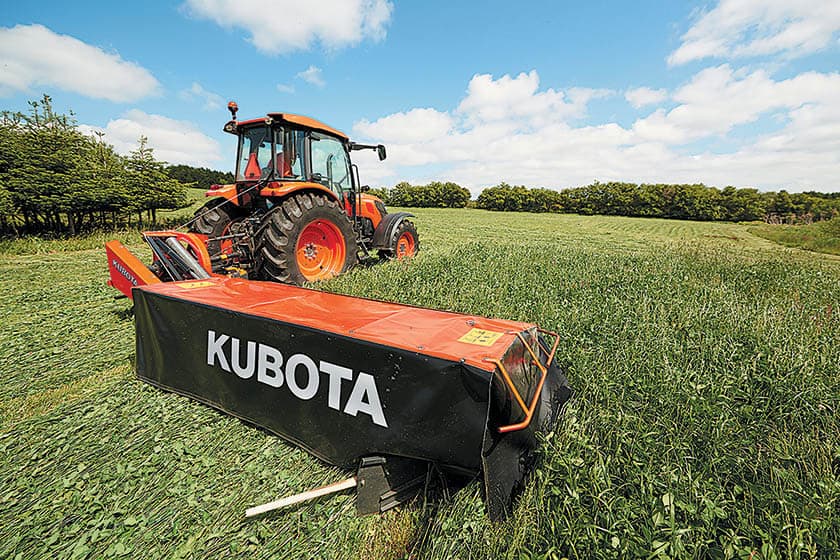

Effective and reliable, the Kubota DM1024 Disc Mower brings you a working width of 7’ 9” and the confidence you’re looking for in a hay tool. A hydraulic cylinder easily lifts the disc mower without utilizing the three-point linkage and when you’re transporting it to and from the field it nimbly folds into a vertical position.The spring loaded breakaway reduces damage from obstacles by protecting the cutterbar. Only requiring a minimum of 46 PTO, the DM 1024 utilizes three counter rotating disks allowing a smooth cut.

Build

My Equipment

Download

Specifications

Compare

Specifications

Special Offers

  • Implement Stand Alone Financing

    Stand Alone Financing Installment Program

    Implement Stand Alone Financing
  • Farmer Veteran Coalition Rebate

    Customer instant rebate for Farmer Veteran Coalition members.

    Farmer Veteran Coalition Rebate

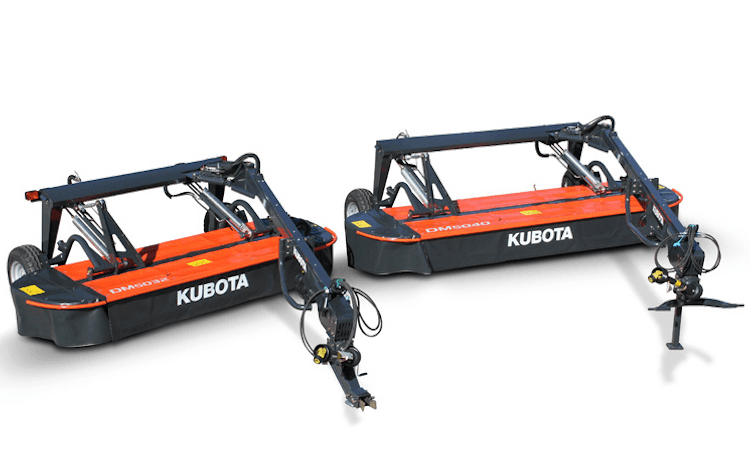

  • DISC MOWER SERIES

    Up to 0% A.P.R. for 48 Months on your new Kubota DM Series!

    DISC MOWER SERIES
DM1024

DM1024

HP

Call for Pricing

Specifications

Break Away

Standard

Cutterbar Operating Angle

-45/+15

Cutting Width Ft. (m)

7' 9" (2.4)

High Skids +20/+40/+80 Mm

Optional

Hitch ( C A T)

2

Lighting Kit

Optional

Minimum P T O Horsepower Required H P/ K W

46/34

Non- Stop Break Away

N/A

Number Of Disc And Knives

6/18

Overrun Clutch

Standard

P T O R P M

540

Pin Hitch

Not Available

Remotes

1

Stubble Height In. (mm)

0.78"-1.97" (20-50)

Swath Board ( R H/ L H)

Standard/Optional

Swath Rollers ( R H/ L H)

Optional (RH)

Transport Width Ft. (m)

3' 9" (1.2)

Weight Lbs. (kg)

992 (450)
